CONNECTING ROD 81-01 CR250, DIRT RACING, MX-09004

Honda
1981-2001 CR250,
1985-1986 ATC 250,
1986 TRX250 ATV,
GASGAS
1997-2011 MC250 / EC250,

CONNECTING CONROD ROD REBUILD KIT.

- OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- phoenixmotos Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

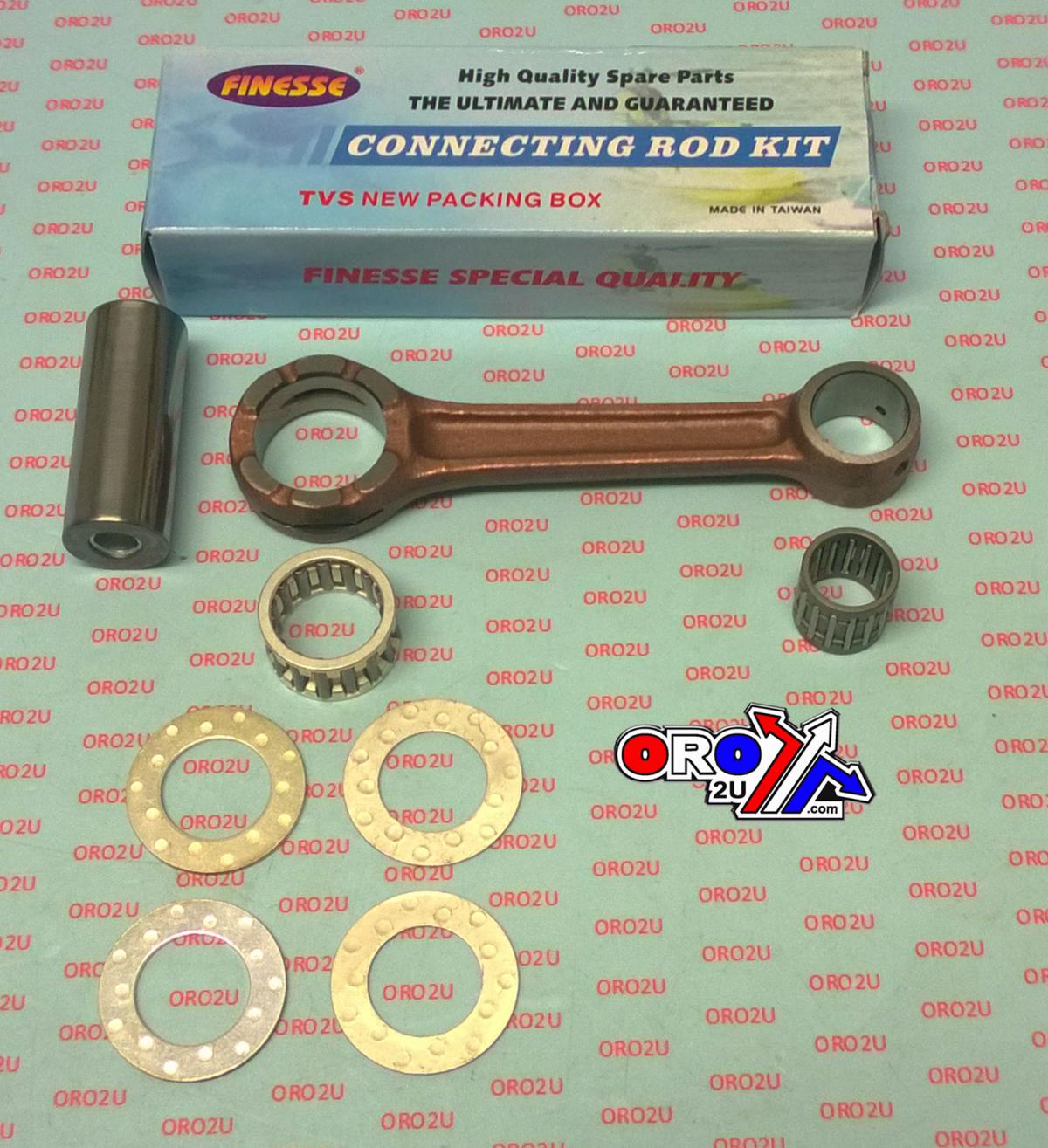

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

SIZE	MM
Centre 2 Centre	125.4
Small End Bearing	18x22x21.70
Small End Bore Ø	22
Small End Width	20
Big End Bearing	15x21x10
Big End Bore Ø	31
Big End Width	16.80
Big End Pin Ø	24
Big End Pin Length	59.50
Washer Thickness	24x40x1 24x40x1.5

Part No. 56-933.DR (Distributed by phoenixmotos.com)

Cross reference numbers ONLY.
03.1315, Vesrah VA-5001, Wiseco WPR124, PROX 03.1315, WOSSNER P2021, HOTROAD 8103, MX-09004, Western Powersports 421-8103, Parts Unlimited 42-2204, Tucker Rocky 162281, HONDA: 06130-KZ3-880, 13200-KA4-740, 13200-KA4-741, 13200-KS7-700, 13200-KS7-830, 13201-KA4-710, 13300-HA2-020, 13300-HA2-670, 13300-HA2-671, 13300-KZ3-690, 13300-KZ3-700, 13300-KZ3-860, 13300-KZ3-880, 13300-KZ3-B10
