CONNECTING ROD 13-22 KTM85, HOTROD 8157 8725 KTM SX105, 56-963.HR

Connecting rod kit for KTM 85 SX (2013–2021), KTM 105 SX (2013–2021), and Husqvarna TC 85 (2016–2021) models. This high-performance kit is designed to meet OE specifications and deliver reliable durability under demanding conditions.

Features:

• Heavy-duty OE replacement connecting rods.
• Made from certified 8620 AISI steel for superior strength and durability.
• Big end design incorporates strategically located side scalloping vent slots to minimize high RPM bearing race distortion.
• Crankpins are manufactured from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc.
• Caged needle roller bearing designs enhance longevity at high RPMs.
• Bronze phosphor thrust washers with silver coating for added lubricity.

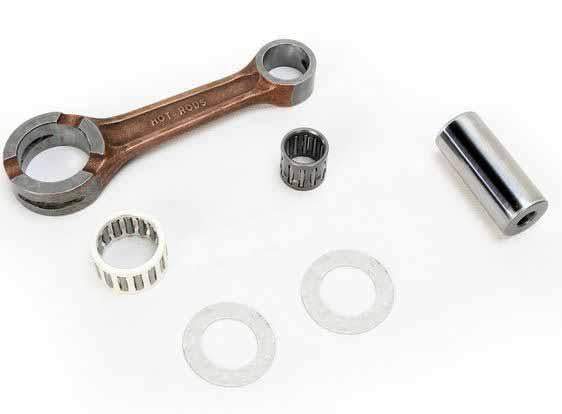

• Complete kit includes connecting rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Fully compatible with Hot Rods and OE crankshafts.
• Made in the USA for exceptional quality.

Specifications:

• Centre to Centre: 96.00 mm
• Big End Bore Ø: 26.00 mm
• Big End Width: Not specified
• Pin Diameter: 20.00 mm
• Pin Length: 46.00 mm
• Small End Bore Ø: 18.00 mm
• Small End Width: Not specified
• Washer Thickness: Not specified

Included Items:

• (1) Connecting rod with (2) bearings
• (1) Crankpin
• (2) Thrust washers
• Instructions

Cross-Reference OEM Part Numbers:
KTM: 47030015200

Vehicle Fitment:

• KTM 85 SX (2013–2021, 17"/14" wheel diameter)
• KTM 85 SXS (2013)
• KTM 105 SX (2013–2021)
• Husqvarna TC 85 (2016–2021)

Part Number: 56-963.HR
