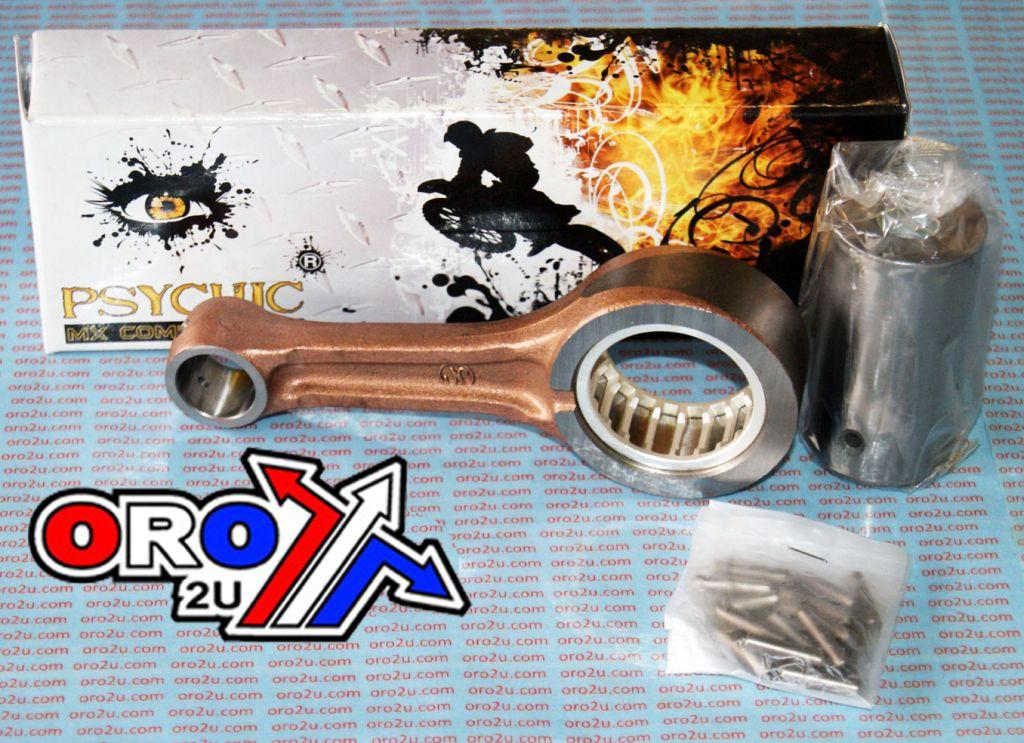

CONNECTING ROD 10-18 YZ450F, KIT PSYCHIC MX-09090 YAMAHA

CONNECTING CONROD ROD REBUILD KIT PSYCHIC MX-09090

YAMAHA
YZF450 / YZ450F 2010-2018,

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

SIZE PLEASE SEE DRAWING SIZE mm. A = 103, B = 18, C = 34, D = 18, E = 21, F = 61

Part No. 56-857.DR (oro2u.com)

Cross reference numbers ONLY.
Bearing MX-09090B,
Pin, Crank 5TG-11681-01-00,
Bearing 93310-63458-00,
Rod, Connecting 33D-11651-03-00,
