CONNECTING ROD 10-11 KX250F, PSYCHIC MX-09097 KAWASAKI KIT

Heavy-duty connecting rod rebuild kit designed for Kawasaki KXF250/KX250F (2010-2011) models. This high-quality OE replacement kit provides superior durability and performance, including all necessary components for a complete rebuild.

Features:

• Manufactured from certified chrome alloy steel for superior strength.
• Crankpins are made from hot-rolled ASTM steel and case-hardened for durability.
• Utilizes advanced caged needle roller bearing designs for enhanced high-RPM longevity.
• Thrust washers crafted from silver-coated bronze phosphor.

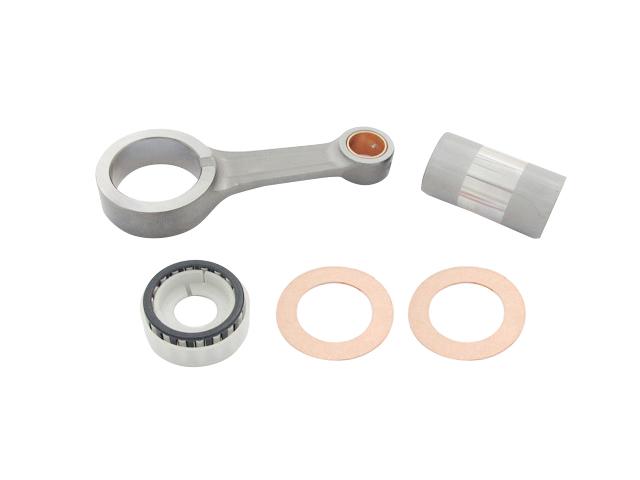

• Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as needed.
• Fully compatible with aftermarket and OE crankshafts.
• Material: SNCM220.

Specifications:

• Centre to Centre: 92.5 mm
• Small End Bearing: None
• Big End Bearing: 30x38x18 mm
• Big End Bore Ø: 38 mm
• Big End Width: 18 mm
• Big End Pin Ø: 30 mm
• Big End Pin Length: 56 mm
• Washer Thickness: None

Vehicle Fitment:

• Kawasaki KXF250/KX250F: 2010, 2011.

Part Number: Psychic MX-09097
