CONNECTING ROD 09-16 CRF450R, PSYCHIC MX-09088

CONNECTING ROD 09-16 CRF450R, PSYCHIC MX-09088

Regular price £117.79 GBP
Regular price Sale price £117.79 GBP
Sale Sold out
Taxes included.

HONDA
CRF450R 2009-2016,

CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09088

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

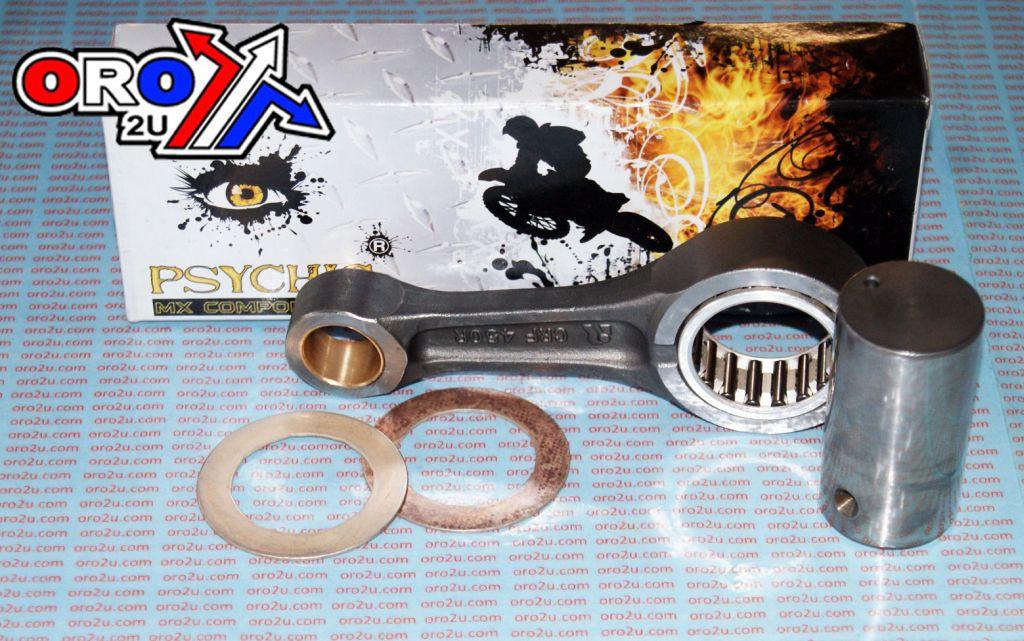

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

SIZE

MM

Centre 2 Centre

102

Small End Bearing

None

Small End Bore Ø

18/15.2

Small End Width

19

Big End Bearing

33x41x19.8

Big End Bore Ø

41

Big End Width

19.8

Big End Pin Ø

34

Big End Pin Length

60.85

Washer Thickness

0.95

Part No. 56-278.DR (oro2u.com)

Cross reference numbers ONLY.
ATHENA P40321014 , 13000-MEN-A50 / 13000-MEN-A70, PSYCHIC MX-09088, HOTRODS 8682, PROX 03.1409, WOSSNER P4027, PROX 03.1409,
