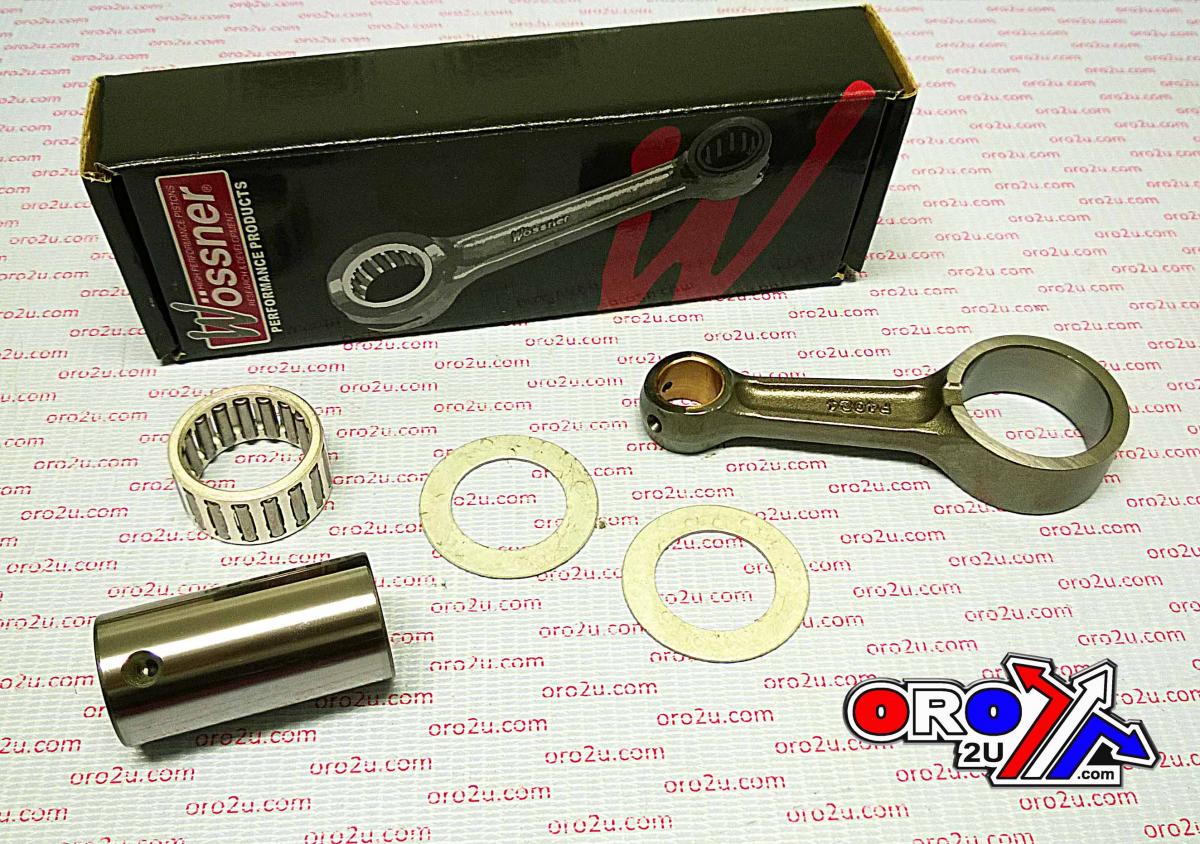

CONNECTING ROD 07-19 CRF150, WOSSNER P4024 HONDA MX

Connecting rod kit for Honda CRF150R (2007–2019), manufactured in Germany by Wossner. This high-quality kit is designed as a direct and cost-efficient OEM replacement. Produced using advanced forging techniques, it ensures exceptional strength, durability, and reliable performance.

Features

• Complete kit includes crankpin, big-end bearing, small-end bearing (if applicable), and washers.
• Double-forged rods ensure superior strength and durability.
• Barrelling surface treatment prevents microcracks and enhances longevity.
• Precisely located oiling slots maximize rod oiling and extend bearing life.
• Meticulously maintained OEM specifications for easy installation and trouble-free performance.
• Manufactured in Germany for outstanding quality and reliability.

Specifications

• Centre-to-Centre: 75.50 mm
• Small End Bearing: None
• Small End Bore Ø: 14 mm
• Small End Width: 14 mm
• Big End Bearing: 25x32x15.8 mm
• Big End Bore Ø: 32 mm
• Big End Width: 16 mm
• Big End Pin Ø: 25 mm
• Big End Pin Length: 51 mm
• Washer Thickness: None

Cross Reference OEM Part Numbers

• 13000-KSE-670
• Hot Rods 8646
• Wossner P4024

Vehicle Fitments

• Honda CRF150R: 2007–2019
• Honda CRF150RB: 2007–2019

Part Number: 56-934.WO
