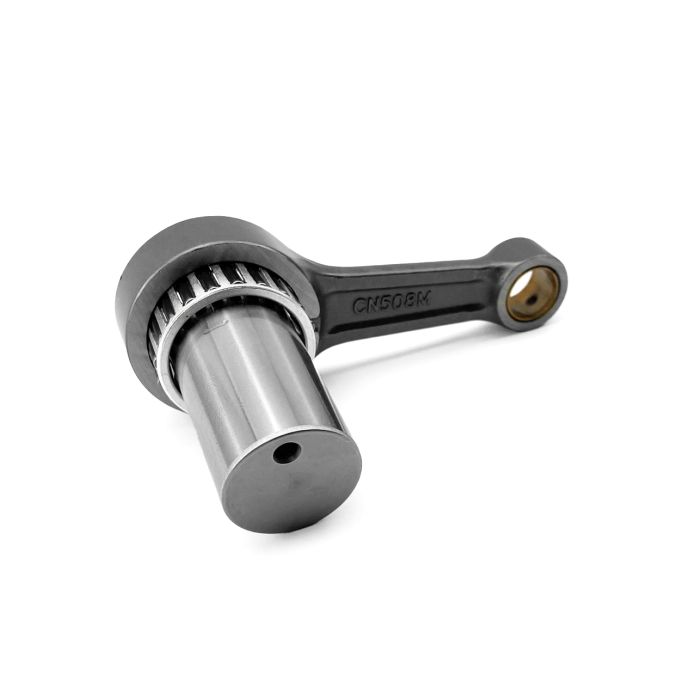

CONNECTING ROD 03-13 YZ250F, NAMURA RX-40017 YAMAHA, MX-09085
YAMAHA
YZ250F YZF250 2003 - 2013,
WR250F WRF250 2003 - 2013,
GAS GAS
EC250F 2010-2015,
CONNECTING CONROD ROD REBUILD KIT.
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
|
SIZE |
MM |
|
Centre 2 Centre |
93.50 |
|
Small End Bearing |
None |
|
Small End Bore Ø |
16 |
|
Small End Width |
15 |
|
Big End Bearing |
32x40x17.8 |
|
Big End Bore Ø |
40 |
|
Big End Width |
18 |
|
Big End Pin Ø |
32 |
|
Big End Pin Length |
54.80 |
|
Washer Thickness |
None |
Part No. 56-910.DR
