CONNECTING ROD 03-13 YZ250F, HOT RODS 8619 YAMAHA YZF250

CONNECTING ROD 03-13 YZ250F, HOT RODS 8619 YAMAHA YZF250

£163.75 GBP
£163.75 GBP
Sale Sold out
Taxes included.

CONNECTING ROD 03-13 YZ250F, HOT RODS 8619 YAMAHA YZF250

Yamaha
YZF250 2003-2013,
WRF250 2003-2013,

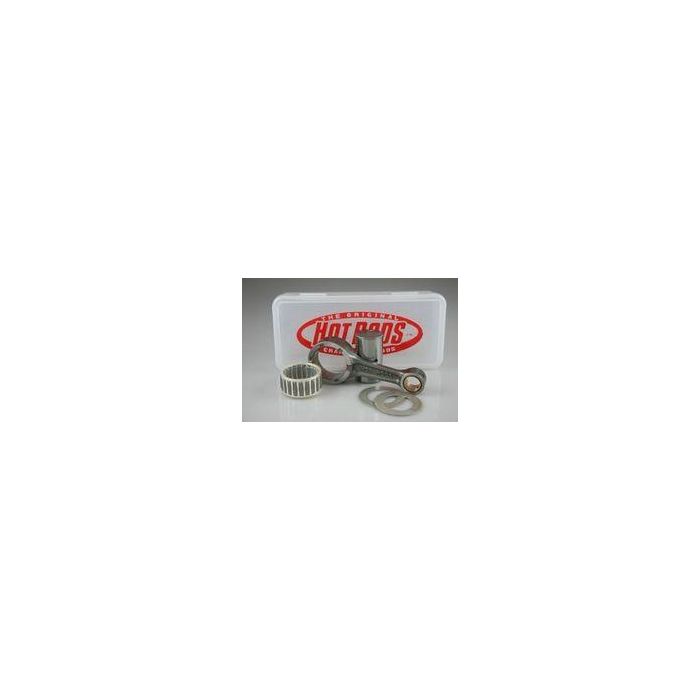

Hot Rods Heavy-Duty Connecting Rod Kit - 8619
  • Kits sold complete with rod, crank pin, crank pin bearing, top end bearing and thrust washers
  • High-quality replacement kits are manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc
  • Advanced design uses strategically located side scalloping and vent slots to minimize high rpm bearing race distortion
  • Rods are double-forged to improve grain flow and maintain dimensional consistency
  • Rods are also shot-peened and double-honed for superior strength under heavy loads
  • Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
  • Thrust washers and crank pin bearings are silver-coated for added lubricity

Technical Specifications:
Big End Bearing (mm) 32x40x18
Big End Bore (mm): 40.00
Big End Width (mm): 18.00
Center To Center (mm): 93.50
Pin Diameter (mm): 32.00
Pin Length (mm): 54.80
Small End Bearing (mm): Bushing
Small End Bore (mm): 16.00

Yamaha
  • 2013 Yamaha YZ250F
  • 2012 Yamaha YZ250F
  • 2011 Yamaha YZ250F
  • 2010 Yamaha YZ250F
  • 2009 Yamaha YZ250F
  • 2008 Yamaha YZ250F
  • 2007 Yamaha YZ250F
  • 2006 Yamaha YZ250F
  • 2005 Yamaha YZ250F
  • 2004 Yamaha YZ250F
  • 2003 Yamaha YZ250F
  • 2006 Yamaha YZ250FSP 50th Anniversary Edition
