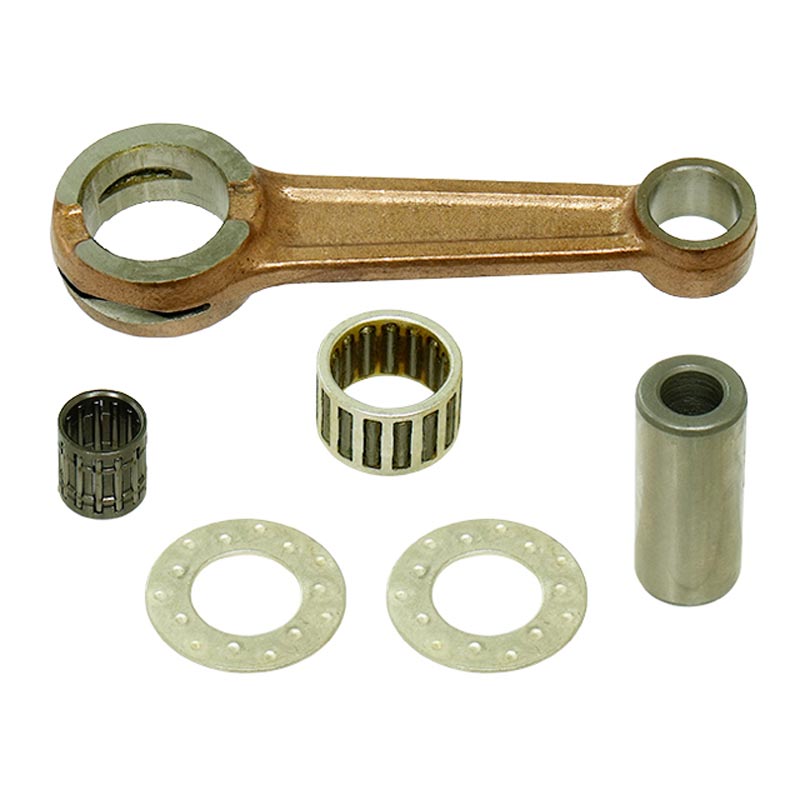

CONNECTING ROD 03-08 KTM65, NAMURA RX-70008 / MX-09039 KIT
CONNECTING ROD 03-08 KTM65, NAMURA RX-70008 / MX-09039 KIT
Couldn't load pickup availability
KTM
SX65 2003-2008,
CONNECTING CONROD ROD REBUILD KIT. NAMURA RX-70008
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
SIZE | MM |
Centre 2 Centre | 88 |
Small End Bearing | 12x15x16.3 |
Small End Bore Ø | 15 |
Small End Width | 13 |
Big End Bearing | 18x24x14.8 |
Big End Bore Ø | 24 |
Big End Width | 14.90 |
Big End Pin Ø | 18 |
Big End Pin Length | 42 |
Washer Thickness | 1.00 |
Part No. 56-960.DR (oro2u.com)
Cross Reference Numbers Only:
KTM: 46030015100, HOTRODS 8626, PROX 03-6023, WOSSNER P2002
