Psychic

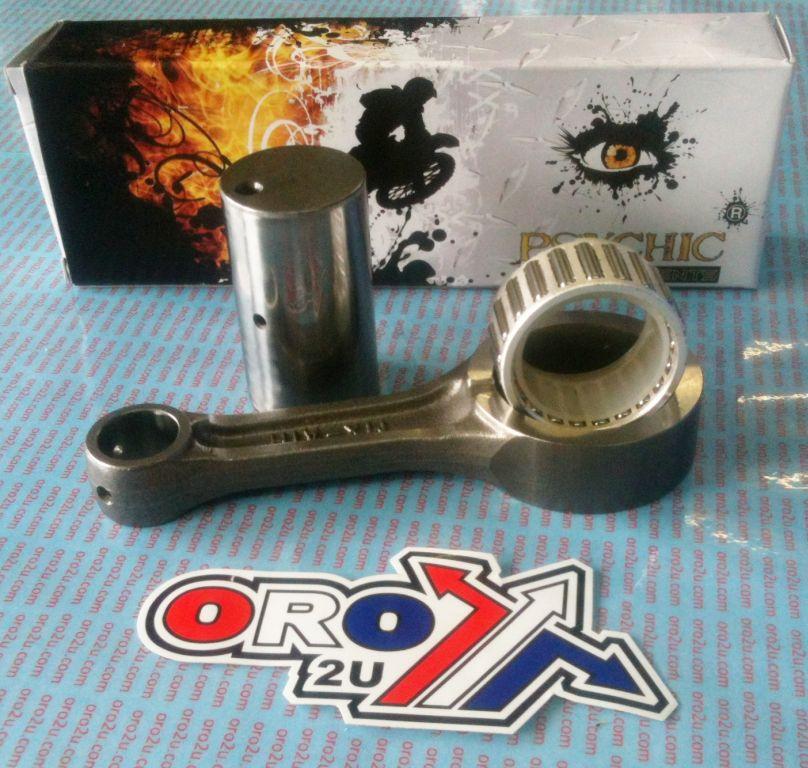

CONNECTING ROD 03-05 YZF450, PSYCHIC MX-09086 YAMAHA MX

CONNECTING ROD 03-05 YZF450, PSYCHIC MX-09086 YAMAHA MX

Regular price £121.05 GBP
Regular price Sale price £121.05 GBP
Sale Sold out
Taxes included.

YAMAHA
2004 - 2006 WR 450F,
2003 - 2005 YZ 450F,

CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09086

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

SIZE

MM

Centre 2 Centre

103.50

Small End Bearing

None

Small End Bore Ø

16

Small End Width

15

Big End Bearing

34x42x20

Big End Bore Ø

42

Big End Width

20

Big End Pin Ø

34

Big End Pin Length

60.90

Washer Thickness

None

Part No. 56-911.DR (oro2u.com)

Cross reference numbers.
ATHENA P40321022, 5XD-11651-00-00, PSYCHIC MX-09086, HOTRODS 8621, PROX 03.2423, WISECO WPR197, WOSSNER P4007, PROX 03-2423, YAMAHA: 5TA-11651-00-00 YAMAHA: 5XD-11651-00-00,
