CONNECTING ROD 02-07 CR250R, HOT RODS 8608 HONDA MX

High-quality connecting rod kit designed for Honda CR250R models, engineered to meet or exceed OEM specifications. This kit provides durability and performance for demanding applications, ensuring reliable operation and ease of installation.

Features:

• Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for superior strength and longevity.
• Advanced design includes side scalloping and vent slots to minimize high RPM bearing race distortion.
• Double-forged rods enhance grain flow and dimensional consistency.
• Shot-peened and double-honed for increased strength under heavy loads.
• Double-drilled small ends provide enhanced lubrication and cooling for the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings improve lubricity and reduce wear.

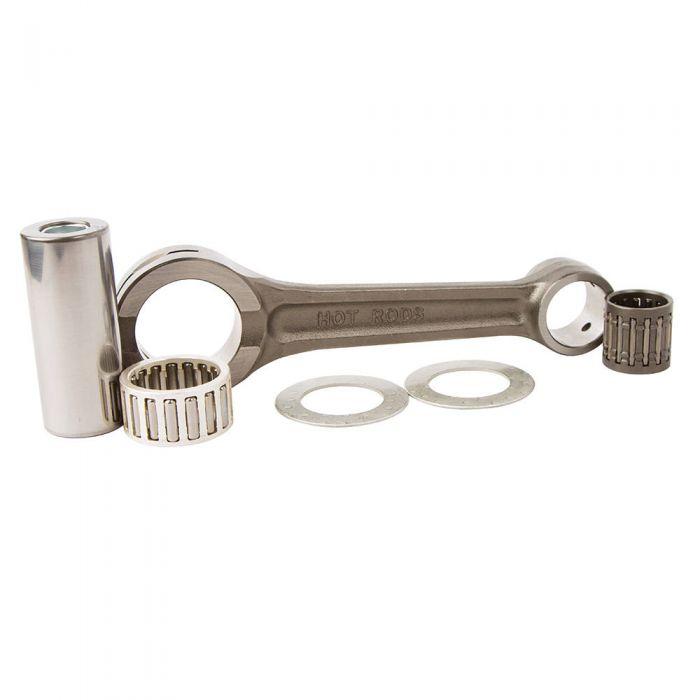

• Complete kit includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers for a comprehensive rebuild.

Specifications (mm):

• Big End Bearing: 25x32x16.3
• Big End Bore: 32.00
• Big End Width: 16.50
• Center to Center: 125.30
• Pin Diameter: 25.00
• Pin Length: 60.00
• Small End Bearing: 18x22x21.7
• Small End Bore: 22.00

Cross-Reference OEM Part Numbers:

• Hot Rods: 8608
• Wossner: P2020
• Wiseco: WPR187
• Psychic: MX-09009
• Honda: 13300-KSK-670, 13300-KSK-730, 13300-KZ3-L20

Vehicle Fitment:

Honda:

• CR250R (2002–2007)

Part Number: 56-169.HR
