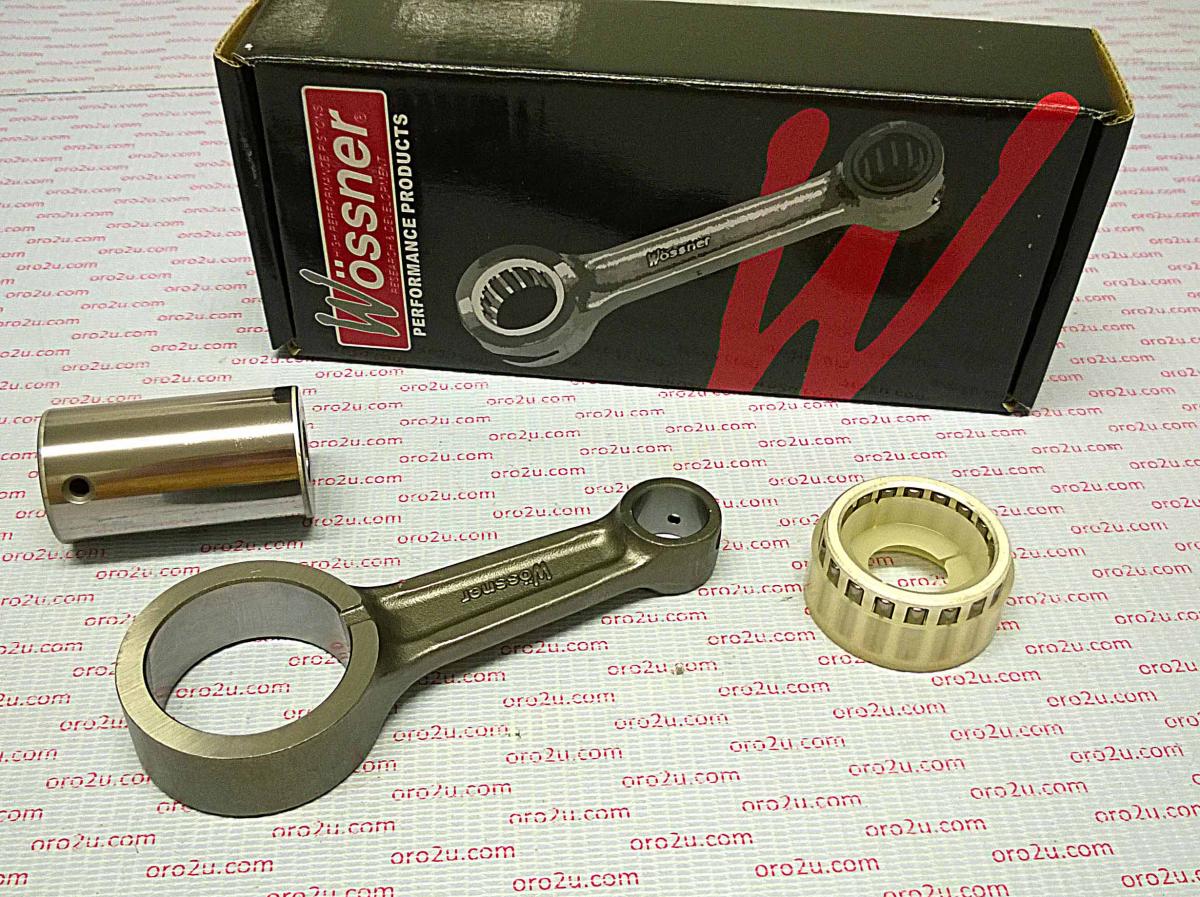

CONNECTING ROD 01-02 YZF250, WOSSNER P4006

Part No. 56-873.WO (oro2u.com)
Yamaha YZ250F YZF250 2001 - 2002,
Yamaha WR250F WRF250 2001 - 2002,
Cross reference numbers. YAMAHA: 5NL-11651-00-00, YAMAHA: 5NL-11651-10-00,

Technical Specifications:
Big End Bearing (mm): 30x38x17.8
Big End Bore (mm): 38.00
Big End Width (mm): 17.97

Center To Center (mm): 93.50
Pin Diameter (mm): 30.00
Pin Length (mm): 54.80
Small End Bearing (mm): Bushing
Small End Bore (mm): 16.00
