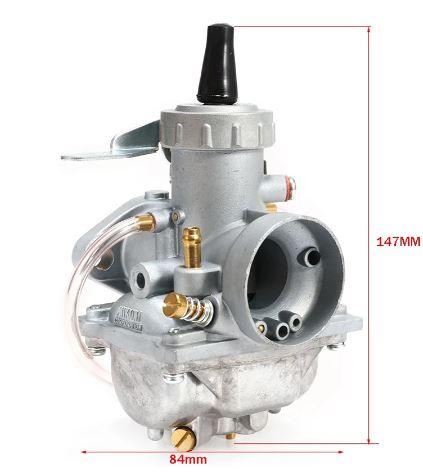

CARBURETTOR 1971-1980 SUZUKI TS100 125 13200-48030

Carburetor Assembly for Suzuki TS125/TS100

Compatible Models:

• 1971 Suzuki TS125 Duster
• 1972 Suzuki TS125 Duster
• 1973 Suzuki TS125 Duster
• 1974 Suzuki TS125 Duster
• 1975 Suzuki TS125 Duster
• 1976 Suzuki TS125 Duster
• 1977 Suzuki TS125
• 1978 Suzuki TS125
• 1979 Suzuki TS125
• 1980 Suzuki TS100
• 1981 Suzuki TS100
• 1979 Suzuki TS100
• 1978 Suzuki TS100

Specifications:

• Type: Flange Mount Carburettor
• Model: VM Carb
• Size: 26mm
• Carburettor Slide Type: Round Slide
• Mount Type: Bolt On Flange
• Idle Location: Left
• Carburettor Depth: 85mm
• Carburettor Height: 133mm
• Carburettor Width: 85mm
• Intake Bell OD: 43mm

Features:

• Top-quality carburetor made to high precision standards.
• Exact OEM measurements and fittings.
• Meets or exceeds OEM specifications.
• Please see the image before ordering to avoid mistakes.
• ORO products are high-quality replacement parts and carry a satisfaction guarantee.
• Best value for money.
• All components match the original equipment in appearance.
• Easy installation; consult a professional if unsure.

Cross Reference Numbers:

• 13200-48030
• GASKET, FLOAT CHAMBER: 13251-11010
• FLOAT: 13252-11010
• PIN, FLOAT: 13254-01010
• PLATE: 13259-97010
• VALVE, NEEDLE: 13370-18111
• GASKET, NEEDLE VALVE: 13392-58600
• JET, PILOT (17.5): 09492-17006
• JET, MAIN (120): 09491-24014
• WASHER, NEEDLE JET: 13382-03110
• RING: 13295-28010, 13295-28011
• SCREW, THROTTLE STOP: 13267-41640
• SPRING: 13268-48110
• RING: 13294-30010, 13278-02340
• PLUG: 13664-18654
• WASHER: 13663-31010
• JET, NEEDLE (0-4): 09494-00242
• VALVE, THROTTLE (CA:2.0): 13551-48130
• NEEDLE, JET (5F41): 13383-48030
• SPRING: 13388-47010
• WASHER: 13382-47010
• CLIP, NEEDLE: 13394-10010
• RING: 13387-47010
• SEAT, THROTTLE VALVE SPRING: 13581-48020
• LOCK WASHER: 08321-21038, 09162-03001
• SCREW: 02111-03067, 02112-0306B
• SPRING, THROTTLE VALVE: 13573-27650
• NUT, CABLE ADJUSTER: 13661-16600
• ADJUSTER, CABLE: 13577-48110
• BOOT, CABLE ADJUSTER: 13681-16601
• SCREW: 13247-05010
• GASKET: 13249-05010
• SCREW: 02112-04168, 02112-0416A
• LOCK WASHER: 08321-21048, 08321-0104A
