CARBURETOR REBUILD KIT 1985 HON ATC250SX, ALLBALLS 26-1310 ATV

CARBURETOR REBUILD KIT ALLBALLS 26-1310

- Kits include all of the necessary components to repair a carburetor.
- Kit includes all O-rings, gaskets, jets, needle, mixture screw, float bowl screws, float valve needle and seat.
- OEM jet sizes are included in the kit.
- NBR rubber material is used on all O-rings and rubber gaskets. NBR has excellent resistance to the ethanol used in today's fuels.

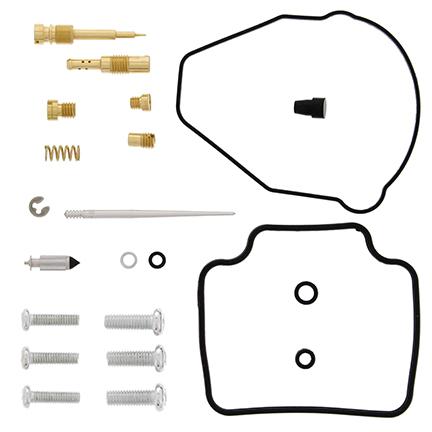

Included Items:

• (1) Float chamber gasket
• (1) Top set gasket
• (1) Needle jet
• (1) Spring
• (1) Small flat washer
• (1) "E" Clip
• (4) O-Rings
• (3) 8-32 x 1/2" Pan head bolts
• (3) 5mm-.80 x 15mm Pan head bolts
• (1) Black plug
• (1) Float valve
• (1) Slow jet #38
• (1) Jet #80S
• (1) Jet #130
• (1) Main jet #45
• (1) Set screw

MODEL FITMENT:

Carb. Rebuild Kit Closed Course Racing Only

Honda

• ATC250SX 85
