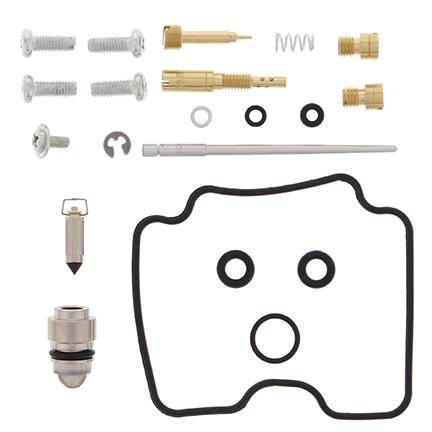

CARBURETOR REBUILD KIT 04-07 SUZ/KAW DRZ/KLX400, ALLBALLS 26-1265 DIRT

- Kits include all of the necessary components to repair a carburetor.
- Kit includes all O-rings, gaskets, jets, needle, mixture screw, float bowl screws, float valve needle and seat.
- OEM jet sizes are included in the kit.
- NBR rubber material is used on all O-rings and rubber gaskets. NBR has excellent resistance to the ethanol used in today's fuels.

Included Items:

• (1) Float chamber gasket
• (1) Needle jet
• (1) "E" clip
• (1) Small flat screw
• (1) Spring
• (2) O-Rings
• (4) 8-32 x 3/8" Pan head bolts
• (1) Small flange pan head bolt
• (1) Needle valve assembly
• (1) Main air jet #62.5
• (1) Main jet #140
• (1) Pilot jet #22.5
• (1) Adjuster screw

MODEL FITMENT:

Carb. Rebuild Kit Closed Course Racing Only

Kawasaki

• KLX400R CA MODEL CV CARB 04,

Suzuki

• DRZ400E CA MODEL CV CARB 04-07
