CARBURETOR REBUILD KIT 03-14 YAM YFM450, ALLBALLS 26-1365 ATV

- Kits include all of the necessary components to repair a carburetor.
- Kit includes all O-rings, gaskets, jets, needle, mixture screw, float bowl screws, float valve needle and seat.
- OEM jet sizes are included in the kit.
- NBR rubber material is used on all O-rings and rubber gaskets. NBR has excellent resistance to the ethanol used in today's fuels.

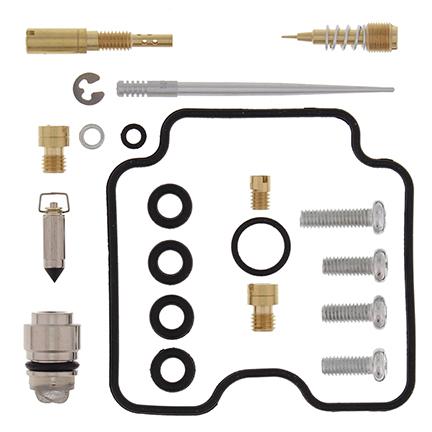

Included Items:

• (1) Float chamber gasket
• (1) Needle jet
• (1) Spring
• (1) Small flat washer
• (1) "E" Clip
• (6) O-Rings
• (3) 8-32 x 3/8" Pan head bolts
• (1) 8-32 x 1/2" Pan head bolt
• (3) 5mm-.80 x 15mm Pan head bolts
• (1) Black plug
• (1) Needle valve assembly
• (1) Pilot jet 17.5
• (1) Main jet #131.3
• (1) Pilot air jet #70
• (1) Main jet #80
• (1) Pilot set screw

MODEL FITMENT:

Carb. Rebuild Kit Closed Course Racing Only

Yamaha

• YFM450 Grizzly EPS 11-14,
• YFM450 Grizzly IRS 07-14,
• YFM450 Kodiak 03-06,
• YFM45FX Wolverine 450 4x4 06-10
