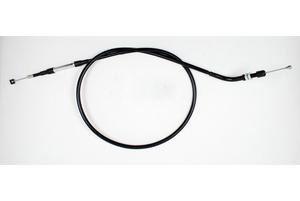

CABLE CLUTCH 02-07 CRF250/450, PSYCHIC 102-412 HONDA

HONDA

• CRF250R 2004-2009,
• CRF250X 2008-2017,
• CRF450R 2005-2008,
• CRF450X 2005-2008,

Cable Throttle, Black

• Clutch cable assembly
• Black PVC outer jacket for maximum flexibility and durability
• Steel inner casing is tightly coiled for low compression ratios
• A pre-lubricated nylon inner sleeve guarantees smooth operation and long life
• All wire ends are bird-caged to terminal casting for superior pull-out resistance
• EPDM molded rubber components for high UV resistance and long life
• Injected-molded components are manufactured from high-strength POM material.

Approximate Size:

• Housing Length: 1123mm
• Ferrule end Top: OD 6.50mm
• Ferrule end Bot. Adjuster: OD 7.85mm with 45° Bend
• Travel: 75mm
• Cable Bottom end Adjuster: M8x1.25 OL 36mm gives 22mm of adjustment. With Rubber Cover
• Cable Top Mid. Adjuster: gives 16mm of adjustment. With Rubber Cover
• Nipple Top end Barrel: 8x10mm
• Nipple Bot. end Pair: 6/3.75x11.5L
• Inner Wire: 2.0mm

Cross reference numbers ONLY:

• PSYCHIC 102-412
• Motion Pro 02-0412
• 22870-KSC-000
• PROX 53.120017
• 14-102.AB
• 22870-MEY-670
• 22870-MEN-850
• 22870-KRN-000
• PROX 53.120017
• 53.120018
• ALLBALLS 45-2018
• 45-2017
• VENHILL H02-3-044-BK
• 02-3002
• 14-102.PX
