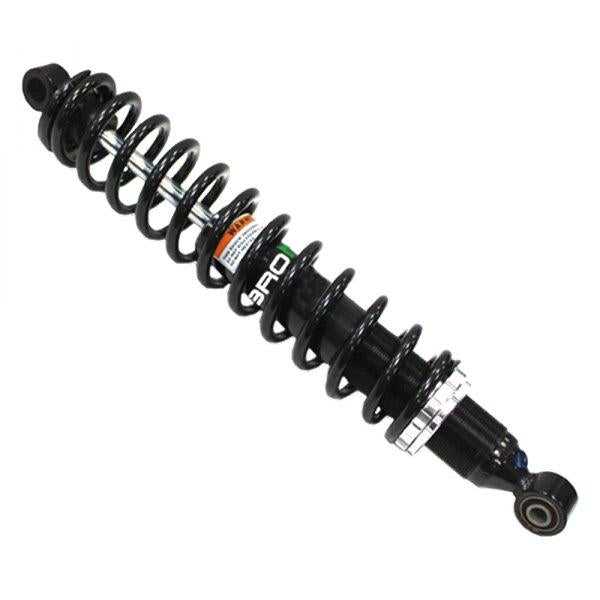

BRONCO SHOCK ATV REAR AU-04257

• TRX450E/ES FOREMAN 1998-04

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 16
• TOP EYELET WIDTH MM: 21
• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 24
• TUBE O.D MM: 38
• STROKE MM: 89.5
• SPRING OD MM: 65
• SPRING WIRE DIAMETER MM: 8
• SPRING RATE LBS/INCH: 112
• SPRING RATE KG/MM: 2.00
• CENTER TO CENTER MM: 390
• CENTER TO CENTER IN: 15 1/3

PART NO 29-547 (Phoenix Motos)
BRONCO REF; AU-04257
OEM REF; 52400-HN0-671, 52400-HN0-A01
