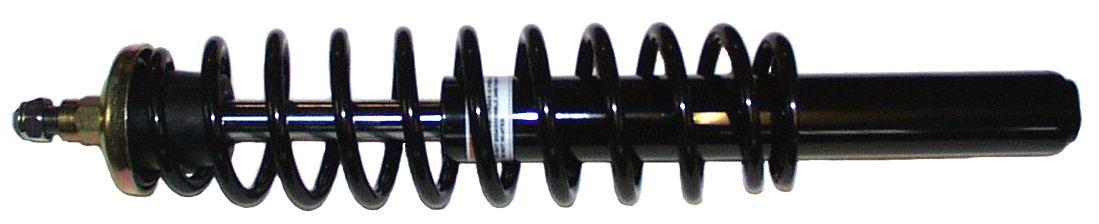

BRONCO SHOCK ATV FRONT POLARIS AU-04300

ATV Front Shock

Compatible Models:

Polaris

• 250 2X4, 4X4, 6X6 1993
• 300 2X4, 4X4 1994-95
• 300 2X4, 4X4 1994-95
• 300 6X6 1994
• 350L 2X4, 4X4, 6X6 1993
• 400 2X4, 4X4, 6X6 1994-96
• BIG BOSS 250 6X6 1991-92
• BIG BOSS 350 6X6 1993

Specifications:

• POSITION TOP HOLE I.D MM: 12.5 X 36 THREADED ROD
• TOP EYELET WIDTH MM: 12.5 X 36 THREADED ROD
• BOTTOM HOLE I.D MM: NA
• BOTTOM EYELET WIDTH MM: NA
• TUBE O.D MM: 38
• STROKE MM: 136.6
• SPRING OD MM: 80
• SPRING WIRE DIAMETER MM: 8
• SPRING RATE LBS/INCH: 62
• SPRING RATE KG/MM: 1.10
• CENTRE TO CENTRE MM: 486
• CENTRE TO CENTRE IN: 19 1/7

Cross Reference Numbers:

• BRONCO REF: AU-04300
• KIMPEX/OEM REF: 273300/100589
• AU-04300 REPLACES OEM # 7041451, 7041304, 7041211.
• INCLUDES POLARIS STRUT KIT # 273300.
