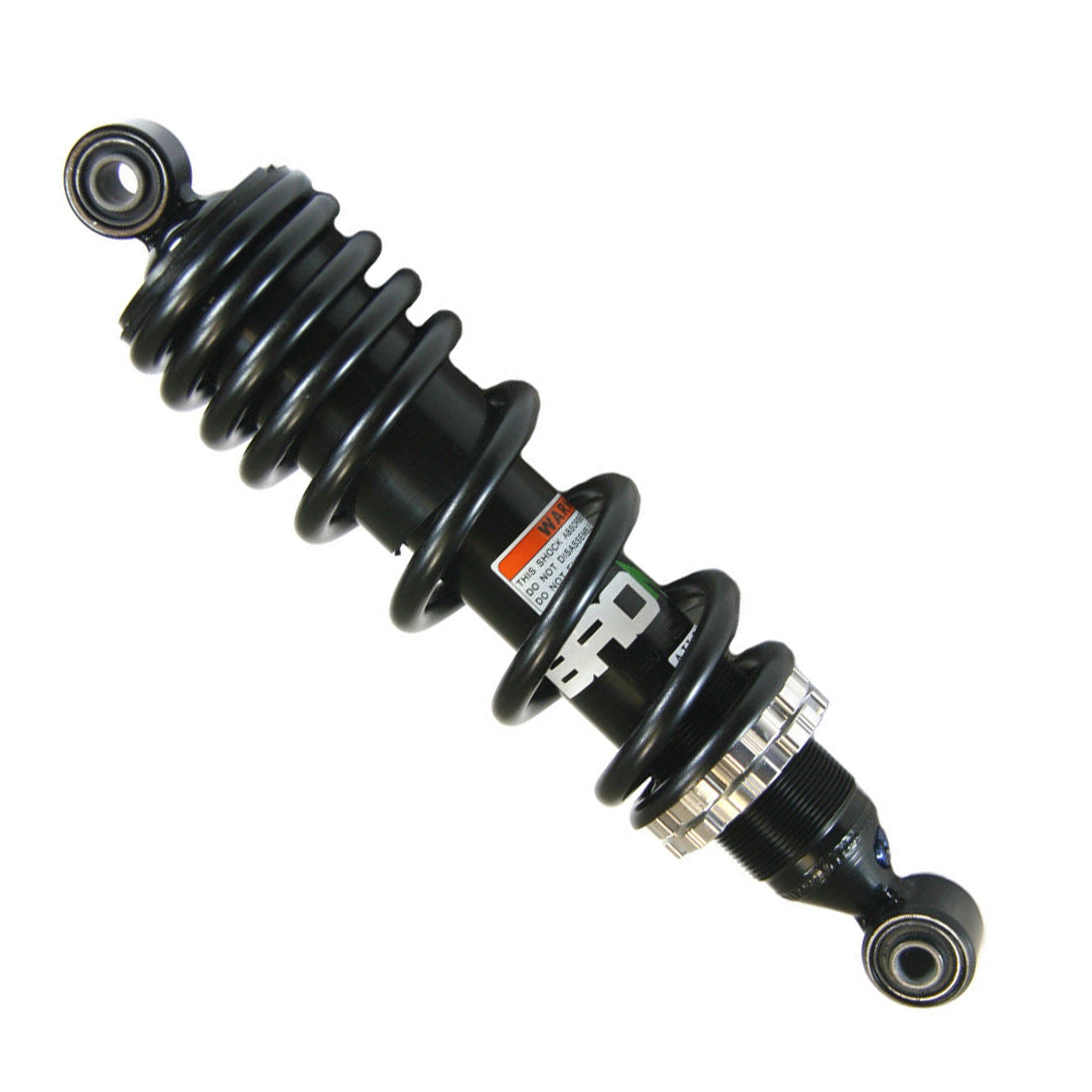

BRONCO SHOCK ATV FRONT KING QUAD, QUAD 91-02

• SUZUKI LT-F4WDX 1991-1998
• SUZUKI LT-F300F 1999-2002


SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 20

• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 30

• TUBE O.D MM: 36
• STROKE MM: 48

• SPRING OD MM: 66

• SPRING WIRE DIAMETER MM: 9

• SPRING RATE LBS/INCH: -

• SPRING RATE KG/MM: -

• CENTER TO CENTER MM: 255

• CENTER TO CENTER IN: 10
