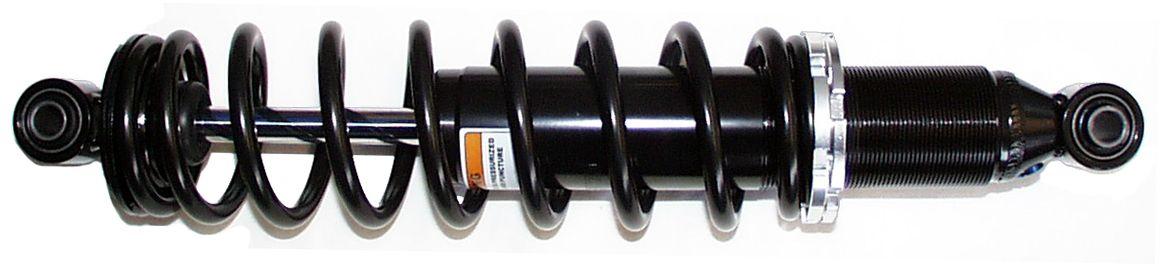

BRONCO SHOCK ATV FRONT, AU-04303, 5ND-F3350-00-00

• Yamaha Kodiak 400 - 2003 2004 2005
  Yamaha Kodiak 450 - 2003 2004

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32
• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 32
• TUBE O.D MM: 39
• STROKE MM: 98
• SPRING OD MM: 74.5
• SPRING WIRE DIAMETER MM: 7.5
• SPRING RATE LBS/INCH: -
• SPRING RATE KG/MM: -
• CENTER TO CENTER MM: 362
• CENTER TO CENTER IN: 14 1/4

Part No. 29-551.EA (phoenixmotos.com)
BRONCO Heavy Duty ATV Front Shock - AU-04303
Cross reference numbers ONLY.

5ND-F3350-00-00
