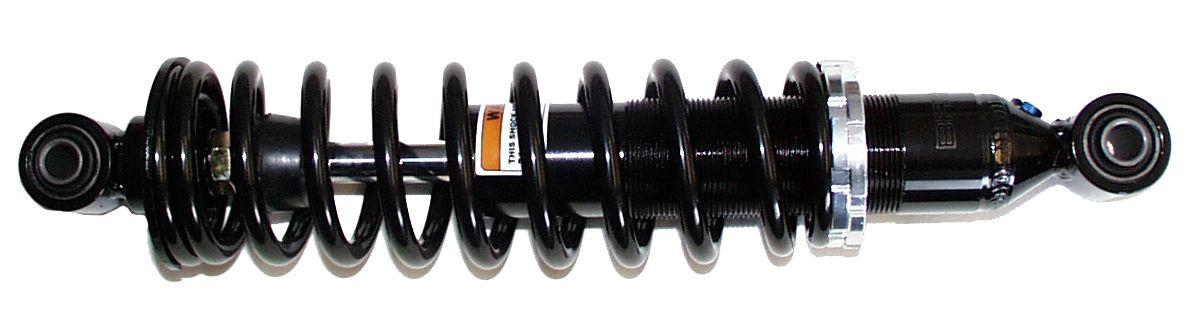

BRONCO SHOCK ATV FRONT, AU-04302

• YAMAHA YFM350FW BIG BEAR 1989 - 1997
  YAMAHA YFM400FW KODIAK 1993 - 1998

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32
• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 32
• TUBE O.D MM: 35.8
• STROKE MM: 58
• SPRING OD MM: 61.6
• SPRING WIRE DIAMETER MM: 7 2/7
• SPRING RATE LBS/INCH: 112
• SPRING RATE KG/MM: 2.00
• CENTER TO CENTER MM: 310
• CENTER TO CENTER IN: 12 1/5

Part No. 29-540.EA (phoenixmotos.com)
BRONCO GAS SHOCK-FRONT NACHMAN AU-04302
