BEARING RETAINER INSTALL TOOL MOTION PRO 08-0227 Honda XR XL MR250 CR250M 07710-0010100

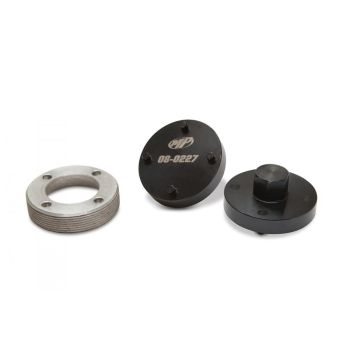

The XR Bearing Retainer Tool is designed for the removal and installation of rear wheel bearing and seal retainer rings on specific Honda motorcycle models. It replaces the OEM tool 07710-0010100 and is compatible with retainer ring part numbers 41231-429-000 and 41231-286-000. The tool features a 19 mm hex design, allowing for easy operation with standard tools. Its precision engineering prevents damage to the retainer ring after the peened stakes have been removed by drilling. This tool is essential for maintaining the integrity of the wheel assembly during servicing.

Compatibility:

• Honda XR650L (1993–2007)
• Honda XR600R (1985–2000)
• Honda XR500 (1979–1984)
• Honda XR350R (1983–1985)
• Honda XR250R (1984–1995)
• Honda XR200R (1981–2002)
• Honda XL200R (1983–1984)
• Honda XL250K (1972–1976)
• Honda MR250 (1976)
• Honda CR250M (1976)

Features:

• Replaces OEM tool 07710-0010100
• 19 mm hex design for use with standard tools
• Precision design prevents damage to retainer rings

Cross Reference Numbers:

• 08-0227
