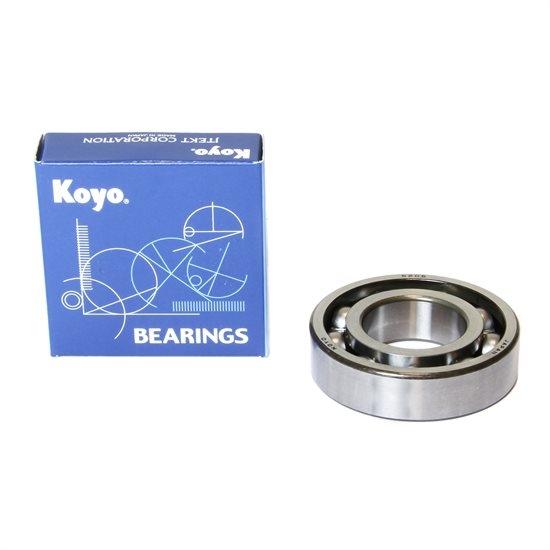

BEARING 6306 C3 KOYO 30x72x19, 92045-1290, 92045-1027, 23.6306C3

High-quality KOYO 6306 C3 open deep groove ball bearing (30x72x19mm). Designed without seals for free circulation of oil or grease, this bearing is ideal for gearboxes and similar environments where a lubricant supply is available, and no contaminants are present. Manufactured in Japan to meet exacting standards, this bearing provides reliable performance and durability.

Features:

• Open design for free circulation of oil or grease.
• Suitable for transmissions and environments with controlled lubrication.
• Cost-effective, durable solution for various applications.
• Made in Japan for superior quality and reliability.

Specifications:

• Inner Diameter (d): 30mm.
• Outer Diameter (D): 72mm.
• Width (B): 19mm.
• Min Radius (r): 1.1mm.
• Dynamic Load: 26.7 kN.
• Static Load: 15 kN.

Maximum Speed:

• In Oil: 12,000 rpm.
• In Grease: 6,400 rpm.

Cross-Reference OEM Part Numbers:

• 92045-1290.
• 92045-1027.
• 23.6306C3.

Vehicle Fitments:

• Suzuki: DR350 (1990–1999), DR350SE (1990–1999).
• Honda: XL250S (1979–1983).
• Yamaha: YZ465 (1980–1981), YZ490 (1982–1990), XT225 (1992–2007).
• Kawasaki: 650 SX (JS650) (1987–1993). 750 SS (JH750) (1995–1997). 750 STX (JT750) (1998). 750 SX (JS750) (1992–1995). 750 SXi (JS750) (1995–1996). 750 SXi Pro (JS750) (1998–2002). 750 ZXi (JH750) (1995–1997). 800 SX-R (JS800) (2003–2011). KX500 (1983–2004). SC650 (JL650) (1991–1995).

Part Number: 56-514.C3.KOYO
