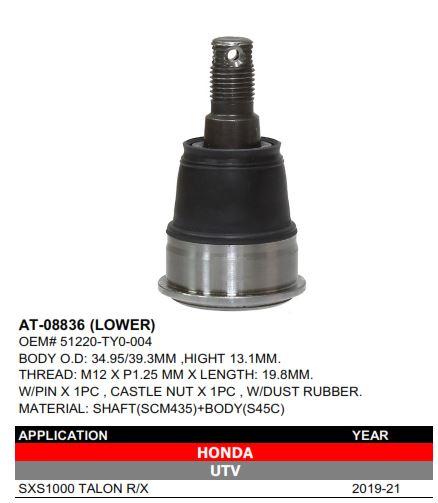

BALL JOINT LOWER SXS1000 TALON R/X 2019-21, BRONCO AT-08836, 51220-TY0-004

Fitment:

• Honda SXS1000 TALON R/X: 2019 - 2021

Specifications:

• Body Outer Diameter (O.D.): 34.95 mm / 39.3 mm
• Height: 13.1 mm
• Thread: M12 x P1.25 mm
• Length: 19.8 mm
• Components Included: Pin x 1 pc, Castle Nut x 1 pc, Dust Rubber
• Material: Shaft (SCM435) + Body (S45C)

Features:

• Manufactured to strict tolerances for a precise fit
• Heavy-duty steel housings
• POM-M90 bearing cup for isolation and longer life
• Includes snap ring and cotter pin (where applicable)
• Exact OEM measurements and fittings
• Meets or exceeds OEM specifications
• High-quality replacement part with satisfaction guarantee

Part Number: 17-5042.BR (phoenixmotos.com)

Cross Reference Numbers:

• AT-08836
• 51220-TY0-004

Compatible Assemblies:

• 2019 Talon 1000R (SXS1000S2R A): Front Knuckle / Driveshaft
• 2019 Talon 1000R (SXS1000S2R AC): Front Knuckle / Driveshaft
• 2019 Talon 1000X (SXS1000S2X A): Front Knuckle / Driveshaft
• 2019 Talon 1000X (SXS1000S2X AC): Front Knuckle / Driveshaft
• 2020 Talon 1000R (SXS1000S2R A): Front Knuckle / Driveshaft
• 2020 Talon 1000R (SXS1000S2R AC): Front Knuckle / Driveshaft
• 2020 Talon 1000X (SXS1000S2X A): Front Knuckle / Driveshaft
• 2020 Talon 1000X (SXS1000S2X AC): Front Knuckle / Driveshaft
• 2020 Talon 1000X-4 (SXS1000S4 A): Front Knuckle / Driveshaft
• 2020 Talon 1000X-4 (SXS1000S4 AC): Front Knuckle / Driveshaft
• 2020 Talon 1000X-4 (SXS1000S4D A): Front Knuckle / Driveshaft
• 2020 Talon 1000X-4 (SXS1000S4D AC): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S2R 6A): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S2R 6AC): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S2R A): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S2R AC): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S2X A): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S2X AC): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S4X 5A): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S4X 5AC): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S4X A): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S4X AC): Front Knuckle / Driveshaft
• 2021 Talon 1000R (SXS1000S2R 5A): Front Knuckle / Driveshaft
• 2021 Talon 1000R (SXS1000S2R 5AC): Front Knuckle / Driveshaft
• 2021 Talon 1000X (SXS1000S2X 5A): Front Knuckle / Driveshaft
• 2021 Talon 1000X (SXS1000S2X 5AC): Front Knuckle / Driveshaft
