Smartcarb SC3 carburetor for Honda Dio AF18 AF25 AF27 AF28

Phoenix Motos are Proud to be SmartCarb dealers!

SmartCarbs are configured to order & are shipped from America - don't worry we take care of the shipping cost from USA & import duty etc.

We estimate 2-3 week delivery from the date of placing your order with us.

To help with your order please message us to confirm the following details:-

Year of bike:

Engine/Exhaust Modifications:

Riding style:

Fuel Octane & Mix Ratio used:

Dios Mío!

The all-new SC3 model SmartCarb kit options are compatible with stock or modified AF18/25 Honda Dios & AF27/28 Honda Super Dios, offering snappy throttle response, maximum power potential, and incredible ease of use. Kits include SmartCarb SC3 carburetor only. Parts/components required for fitment/throttling are not included. View Fitment Information below for more information.

In general we recommend the 28mm size for Dios up to 110cc and the 36mm for Dios 110cc+

Every SmartCarb ships pre-adjusted specifically for your bike setup. Please provide information in the forms below about any engine/exhaust modifications, how you ride (riding style), and what fuel selection and oil premix ratio you use.

Description

New Unibody Design!

The SC3 SmartCarb replaces the stock or modified Honda Dio carburetor

The SmartCarb SC3 is precision air/fuel metering instrument that provides extremely fine fuel atomization, precise mixture control, and automatic air density compensation in a single circuit, externally adjustable, jet-less fuel system.

SC3 Upgrades:

• Ludicrously Simple Design | CNC billet machined unibody construction
• O-ring Float Bowl Gasket | Improved sealing and sleeker look
• “Tucked” Fuel Fitting | Improved fuel line routing
• Crisper Clicker Haptics | Improved clicker adjustment feel
• Improved Fuel Rate| 2X dump passages for quicker float bowl fueling response
• Reduced Part Count | Cost savings passed to our customers (-$100)

SmartCarbs are proudly designed and manufactured in the USA!

Performance Guarantees

Less Is More

The SC3’s patented float bowl venting and single circuit, metering-rod-only fueling work together to provide superior performance and efficiency at every throttle position when compared to competing fuel systems. No jets, no secondary circuits, and no compromises.

• 8-10% More HP & Torque | Compared to fully tuned jet/needle carburetors size-for-size
• 25-30% Greater Fuel Economy | Forget the oversized tank or pair one up for ultimate range
• 30-50% Less Emissions Outputs | 3X EPA certified for on-road emissions
• Incredibly Crisp, Clean Throttle Response | Increased torque/tractability & substantial peak RPM overrev
• Ships Pre-Tuned | Every SC3 SmartCarb ships pre-adjusted specifically for your Honda Dio

Ultimate Simplicity

Everything You Need, Nothing You Don’t

While competing fuel systems continue down the path of ever-increasing complexity by adding power-jets, additional circuits, and adjustment knobs, the SmartCarb SC3 takes a different approach. Our patented single circuit design makes the SC3 the easiest carburetor on the planet to tune and maintain.

• Tool-Free Tuning in Seconds | SC3 offers the finest adjustment resolution of any carburetor, right at your fingertips
• Set and Forget | Automatic air density compensation for elevation, temperature, and even blow-thru boost
• No Jets or Jetting | Trash the brass and leave jetting behind
• Stop Getting Hosed | Super clean form-factor with integrated float bowl venting – NO dangly hoses
• Less is More | Smallest part count of any carburetor on the market
• Mean AND Green | Zero fuel spillage, even when tipped over

Fitment Information

SC3 model SmartCarbs require an aftermarket intake flange/manifold, throttle cable, and air filter kit. Any Honda Dio compatible intake flange/manifold, throttle cable, and air filter designed for use with the 28mm Keihin PWK or 36/38mm Keihin PWK is compatible with SmartCarbs of similar size.

The 28mm SC3 SmartCarb for Honda Dio requires a 35mm ID (inner diameter) intake flange/manifold and a 50mm ID (inner diameter) air filter (if used) for proper fitment.

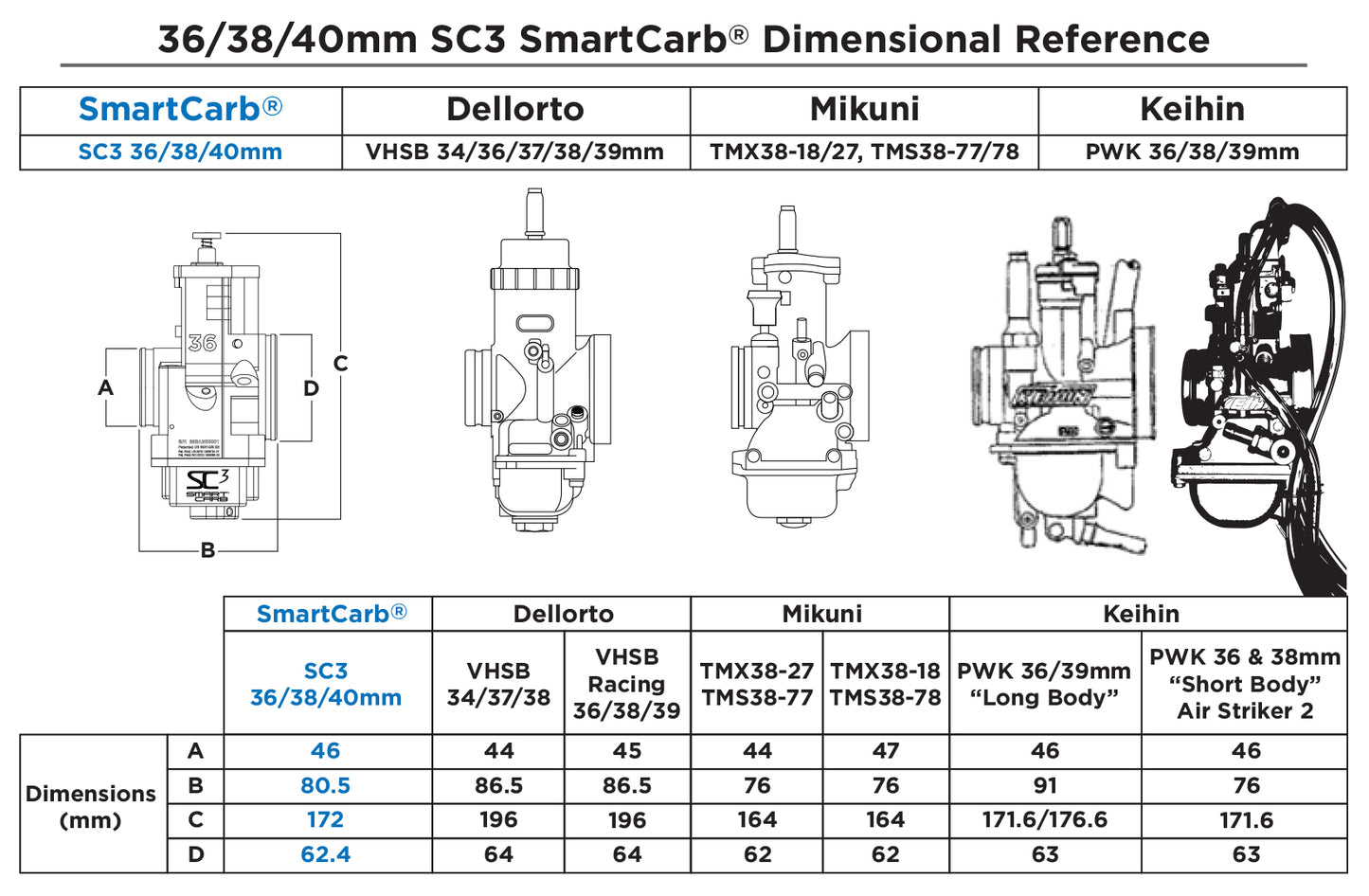

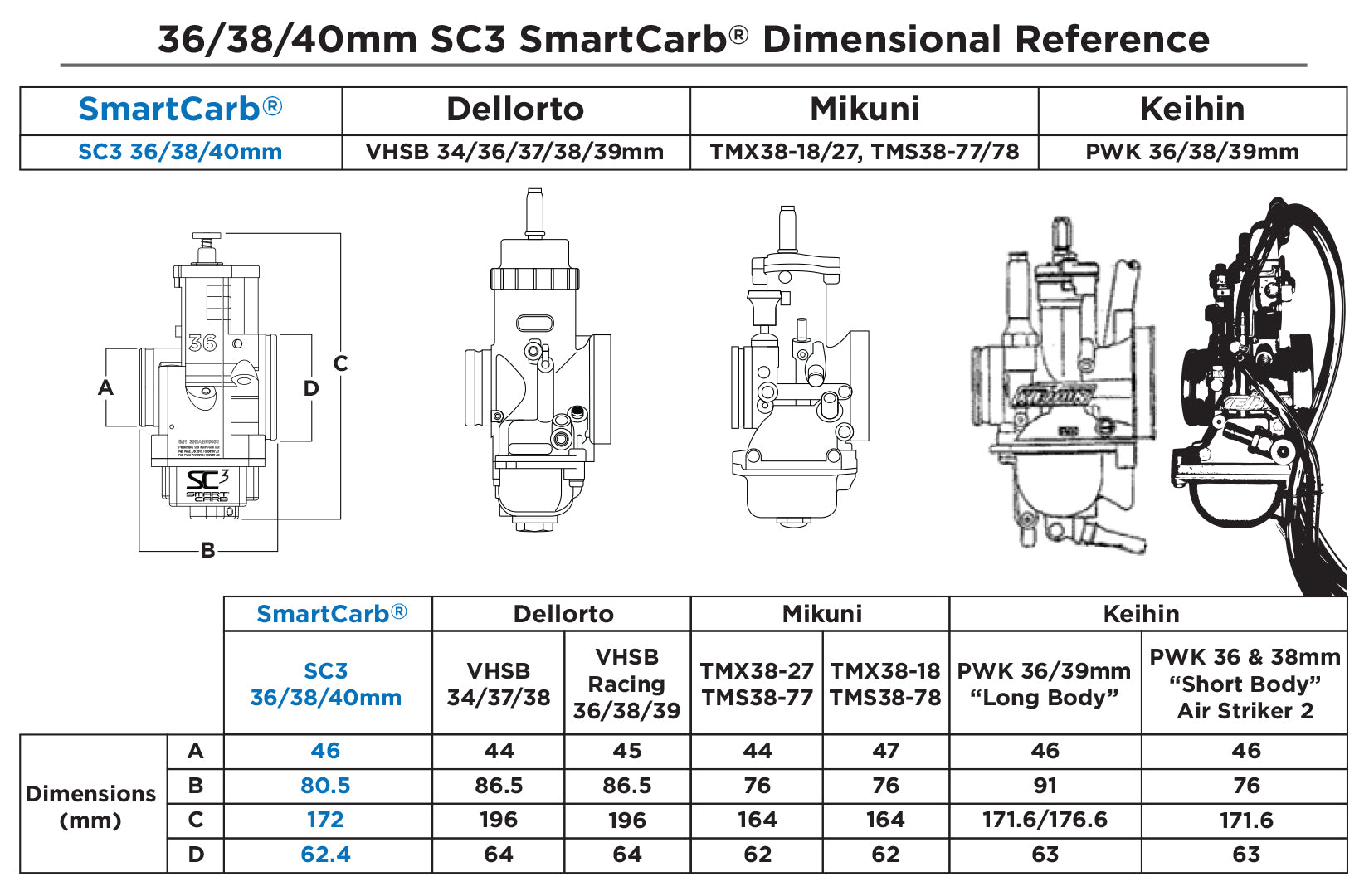

The 36mm SC3 SmartCarb for Honda Dio requires a 46mm ID (inner diameter) intake flange/manifold for proper fitment. View the 36mm SC3 SmartCarb Dimensional Guide to assess fitment. Engine-side and filter-side spigot dimensions below:

• A (engine-side spigot outer diameter) 46mm
• D (filter-side spigot outer diameter) 62.4mm OR 76.2mm (Bell Adapter option)
