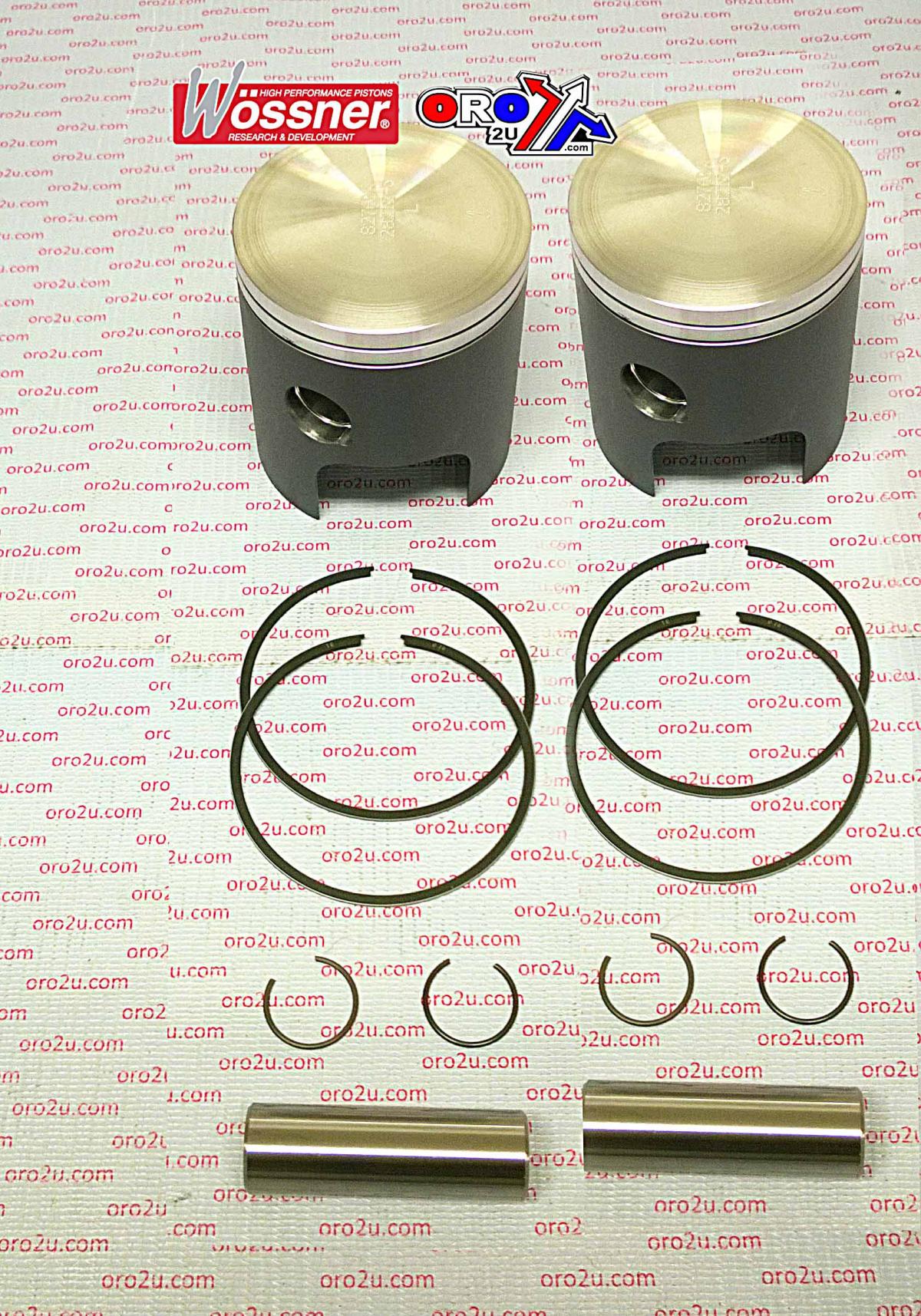

PISTON KIT SET/2 TWIN GT500, WOSSNER K8276DA-2 70.00mm

SUZUKI
TWIN T500 / GT500 1976-1977,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9886.000-2 (phoenixmotos.com)
CLIP No. CW18,
PIN No. WP033,
RINGS No. RSB7000 x 2

Display (cm3) 492
Hub stroke (mm) 64.00
Clearance (mm) 0.09
Wossner compression Ratio:2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 31.80
Theorectical weight (G)
