CONNECTING ROD 13-18 KTM85, PSYCHIC MX-09105 KIT SX85, KTM 85SX 105SX 2013-2018, Husqvarna TC85 2014-2018

CONNECTING ROD 13-18 KTM85, PSYCHIC MX-09105 KIT SX85, KTM 85SX 105SX 2013-2018, Husqvarna TC85 2014-2018

£88.29 GBP
£88.29 GBP
Sale Sold out
Taxes included.
KTM
85SX 105SX 2013-2018,
Husqvarna
TC85 2014-2018,

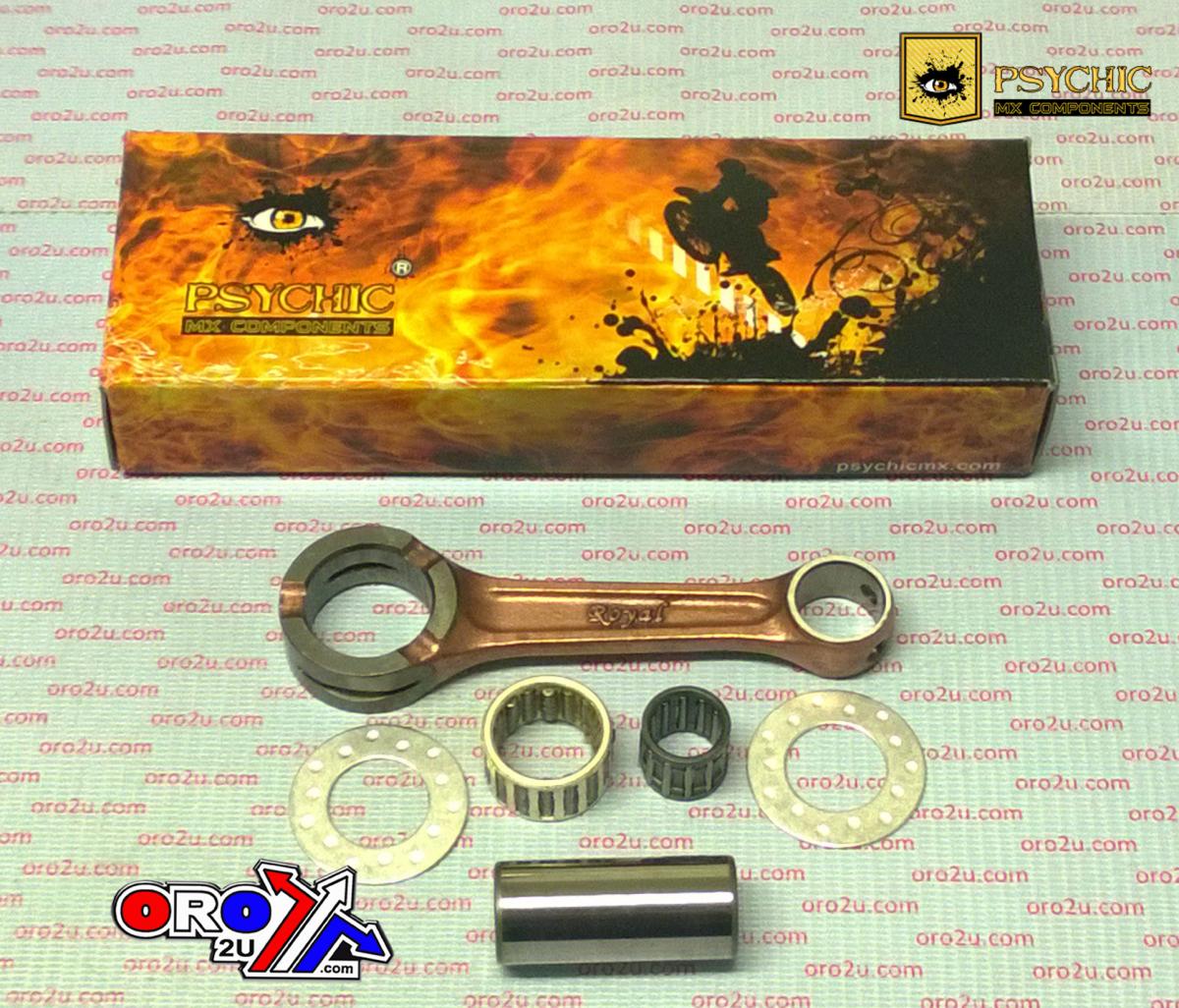

CONNECTING ROD REBUILD KIT, PSYCHIC MX-09105

  • Heavy-duty OE replacement connecting rods
  • Certified Chrome steel provides superior strength
  • Uniquely designed big end uses strategically located side scalloping vent slots to minimize high rpm bearing race distortion
  • Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened.
  • Psychic uses the latest in caged needle roller bearing designs for high rpm longevity
  • Thrust washers are manufactured from bronze phosphor and are silver coated
  • Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers.

SIZE

MM

Centre 2 Centre

 96

Small End Bearing

14x18x16.5

Small End Bore Ø

18

Small End Width

14

Big End Bearing

20x26x14.8

Big End Bore Ø

26

Big End Width

15

Big End Pin Ø

20

Big End Pin Length

46

Washer Thickness

20x36x1.00

Part No. 56-963.DR (phoenixmotos.com)

Cross reference numbers ONLY.
RO-8212 , 47030015200, ATHENA P40321041, PSYCHIC MX-09105, HOTRODS 8157, PROX 03.6113, WOSSNER P2065,
